Wine columns, undercounter and 400-series storage
Sub-Zero wine cooler repair from Carmel to Santa Cruz
Wine storage is ordinary refrigeration held to a tighter tolerance. The failures are the same as a refrigerator's, but the consequences arrive quietly, months before anyone opens a bottle and finds out.
A refrigerator two degrees off is fine. Wine storage two degrees off, for a year, is a different conversation.
The display is not the measurement
Wine wants somewhere near 55F and, more importantly, wants it to stay there. Swing does more harm than a steady offset: expansion and contraction works the cork, and a cellar that runs 52 at night and 64 in the afternoon will push wine past the seal long before anything tastes cooked.
Which is why the first thing we do is ignore the panel. A thermistor that has drifted reads plausibly and confidently, and there is nothing in the unit's behaviour to give it away. We put an independent probe in a water mass on the shelf, leave it, and compare. If the panel and the probe disagree by more than a couple of degrees, the sensor is the job.
Two-zone units add one more question: whether the zones are independent systems or one system with a damper. That decides whether a warm upper zone is a refrigeration fault or an air fault, and it is on the model plate.
| What you notice | Usual cause | What the repair involves |
|---|---|---|
| Cannot hold temperature on warm days | Condenser loaded, or no clearance in the cabinetry | Clean the coil, then argue with the joinery about air |
| Panel right, bottles warm | Thermistor drift | Probe comparison, then sensor replacement |
| One zone warm | Damper, zone fan, or a second sealed system down | Depends on the model; airflow is checked first |
| Condensation inside the glass | Door seal, or a room at very high humidity | Gasket set and hinge alignment, plus room ventilation advice |
| New vibration or hum | Hardened compressor mounts, unbalanced fan | Mounts, or the fan assembly |
| Interior light warming the top zone | Old incandescent lamps left on continuously | Lamp change, and a word about leaving display lighting on |
| Unit dead, no display | Supply, board, or start components | Electrical checks before anything is ordered |

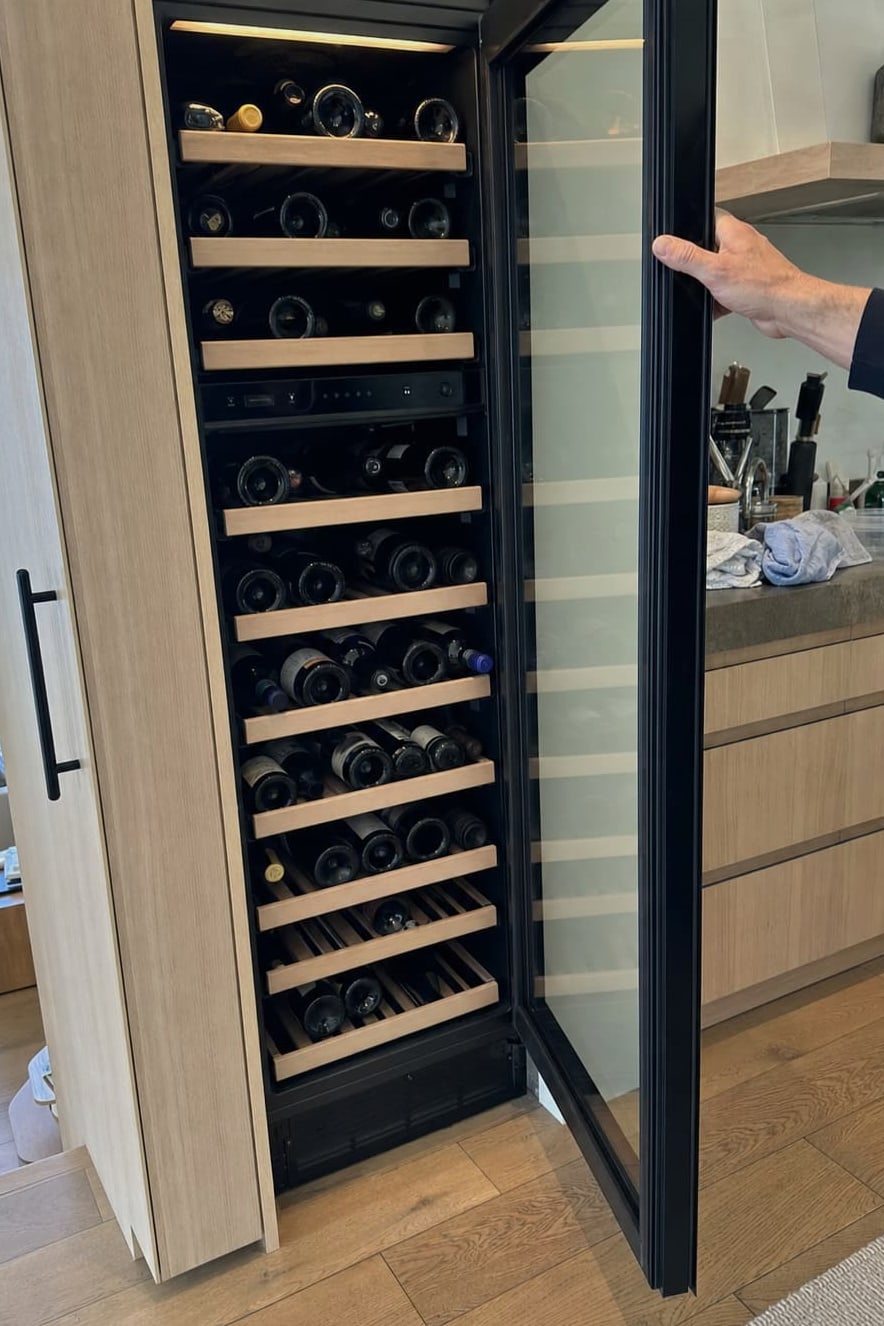

We work on the wine columns and undercounter units as well as the older 400-series wine storage cabinets. Parts availability on the oldest of those is the real constraint, and we will tell you honestly when a part has gone.
Pebble Beach, Carmel and the Santa Cruz hills have a lot of wine kept in rooms that were never built as cellars.
The room is half the problem
A great deal of wine on this coast lives in a garage, a below-grade utility room, or a butler's pantry with a door that stays shut. Those rooms sit near saturation for months at a time in a marine climate. The unit will manage its own interior, but its condenser is breathing that room's air, and its cabinet is standing in that room's humidity.
What we see: rack screws rusting, labels going spotty, and a condenser with a damp dust-and-salt film that is far worse for heat rejection than dry dust. If the room has no ventilation, cleaning the coil buys months rather than years.
Where the cabinet is built into millwork, check the clearance the manufacturer's install sheet asks for at the top and behind the grille. A wine unit boxed in with no air path will run continuously through a warm September and then fail in a way that looks like a refrigeration fault and is not.
Questions we get on this one
-
The display says 55 but the bottles feel warm. Which one is right?
Put a probe in a bottle-shaped mass of water on the shelf and leave it two hours. That reading is the truth. A drifted thermistor will hold a confident display several degrees away from the actual storage temperature, and wine notices long before a person does.
-
One zone works and the other does not.
On a two-zone unit sharing one sealed system, that is usually the damper or the zone fan rather than the refrigeration. On units with independent systems it can be one system down. Which of those it is depends on the model, so the plate matters.
-
The unit runs constantly in summer and never has in previous years.
Check clearance and the condenser before anything else. Wine units are frequently built into cabinetry with almost no air path, and once the coil loads up with dust or salt film the machine simply cannot reject heat on a warm afternoon.
-
We have mould on the labels and rust on the rack screws.
That is the room, not the appliance. Coastal cellars and garages sit at high humidity for months. The unit will hold its own internal humidity, but a below-grade room with no ventilation around the cabinet works against it and against your labels.
-
Is a vibrating wine unit doing damage?
It is worth investigating. New vibration usually means a compressor mount that has hardened or a fan blade out of balance, and either way the noise is a symptom of something that will get worse. Constant vibration is also the one thing wine storage is specifically designed to avoid.
Book it, or talk it through first
Give us the model number and what the box is actually doing. We would rather spend two minutes on the phone than turn up with the wrong part.
$89 service call, waived when you book the repair. Monday to Saturday, 8am to 6pm.
